Backplanes BPD, BPF for T Series
Backplanes BPD, BPF for T Series

DATASHEET


Backplanes BPD, BPF for T Series

Share

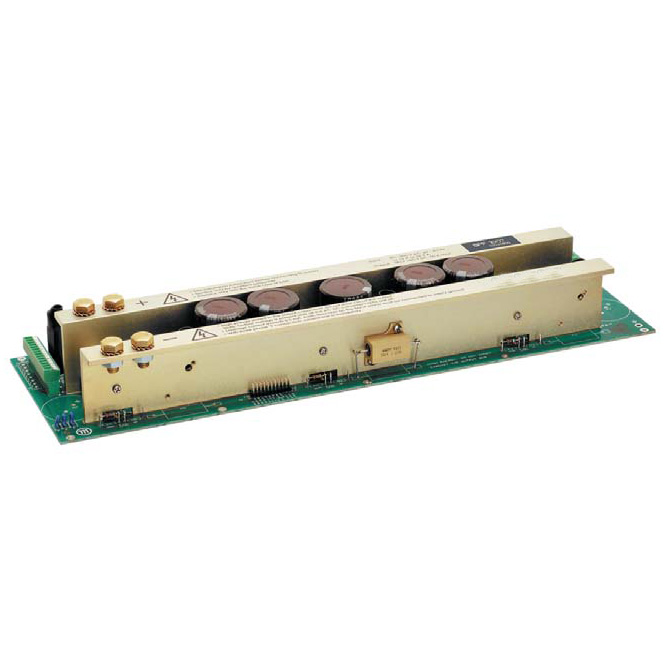

The back plane types BPF1000 and BPD1000 have been designed for fast and simple set-up of 19" rack mounted power supply systems powered by AC-DC converters of the T series. Battery charger systems, telecom rectifiers and modular power bus systems can easily be configured with n+1 redundancy if required. Three T Series converters can be plugged into one back plane providing up to 1.6 kW output power.

Specifications

  • 19" / 3U Rack-Systems
  • 1.6 kW maximum power
  • Single or triple phase connection

Features

  • Provides controller function
  • Redundant configuration possible
  • Easy configuration of telecom rectifiers, battery chargers and power bus systems

Email Form

SPECIFICATIONS

The back plane types BPF1000 and BPD1000 have been designed for fast and simple set-up of 19" rack mounted power supply systems powered by AC-DC converters of the T series. Battery charger systems, telecom rectifiers and modular power bus systems can easily be configured with n+1 redundancy if required. Three T Series converters can be plugged into one back plane providing up to 1.6 kW output power.

Specifications

  • 19" / 3U Rack-Systems
  • 1.6 kW maximum power
  • Single or triple phase connection

Features

  • Provides controller function
  • Redundant configuration possible
  • Easy configuration of telecom rectifiers, battery chargers and power bus systems
