DRC 0810/1010 Series - Radial Drum Choke
DRC 0810/1010 Series - Radial Drum Choke

DATASHEET


DRC 0810/1010 Series - Radial Drum Choke

Share

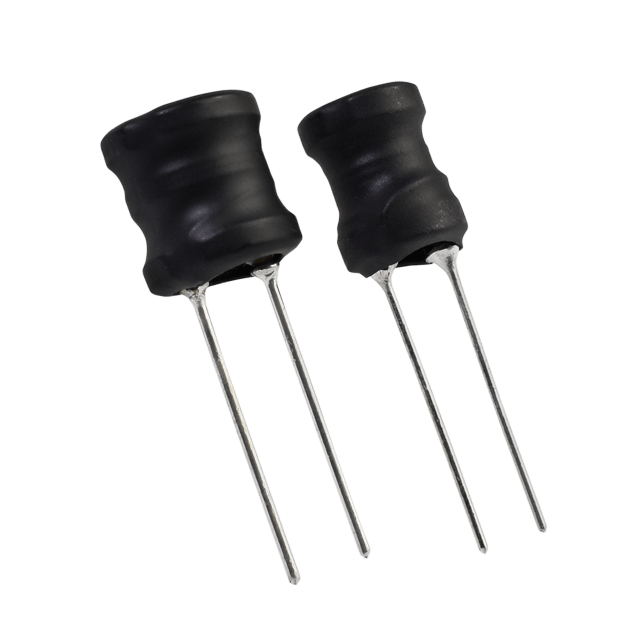

The DRC-0810, DRC-1010 Series is the third series in Signal’s new inductor series of Signal’s line of unshielded radial drum chokes which are also known as fixed or bobbin core inductors. These through hole mount components are commonly used for general purpose filtering of high frequency signals and mitigating EMI/RFI. They frequently make their appearance in a wide variety of applications such as industrial, consumer, and medical products. Utilizing the latest winding technology, copper windings and ferrite cores, Signal’s DRC Series addresses the needs of modern filtering applications by providing the most effective electrical noise suppression via a combination of high impedance, large inductance, and elevated current capacity.

Specifications

  • Inductance Range: 3.3µH to 15000µH
  • Operating Temperature Range: -20°C to +85°C
  • Storage Temperature Range (component): -40°C to +125°C
  • Rated Current : It is either the inductance is 10% lower than its initial value in DC Saturation characteristics or temperature rise becomes ΔT = 20°C (Ta = 20°C), whichever is lower

Features

  • Wide inductance range
  • Lowest DCR
  • Tape packaging for auto-insertion
  • Shrink tubing protected winding
  • Fixed lead spacing
  • High peak current support
  • Large saturation current capacity
  • Small footprint

Datasheets and Drawings

Data Sheet DRC 0810/1010 Series Datasheet

Email Form

SPECIFICATIONS

The DRC-0810, DRC-1010 Series is the third series in Signal’s new inductor series of Signal’s line of unshielded radial drum chokes which are also known as fixed or bobbin core inductors. These through hole mount components are commonly used for general purpose filtering of high frequency signals and mitigating EMI/RFI. They frequently make their appearance in a wide variety of applications such as industrial, consumer, and medical products. Utilizing the latest winding technology, copper windings and ferrite cores, Signal’s DRC Series addresses the needs of modern filtering applications by providing the most effective electrical noise suppression via a combination of high impedance, large inductance, and elevated current capacity.

Specifications

  • Inductance Range: 3.3µH to 15000µH
  • Operating Temperature Range: -20°C to +85°C
  • Storage Temperature Range (component): -40°C to +125°C
  • Rated Current : It is either the inductance is 10% lower than its initial value in DC Saturation characteristics or temperature rise becomes ΔT = 20°C (Ta = 20°C), whichever is lower

Features

  • Wide inductance range
  • Lowest DCR
  • Tape packaging for auto-insertion
  • Shrink tubing protected winding
  • Fixed lead spacing
  • High peak current support
  • Large saturation current capacity
  • Small footprint
