700DNC40-24-8G
700DNC40-24-8G

DATASHEET
OUT OF STOCK
Play

700DNC40-24-8G

Share

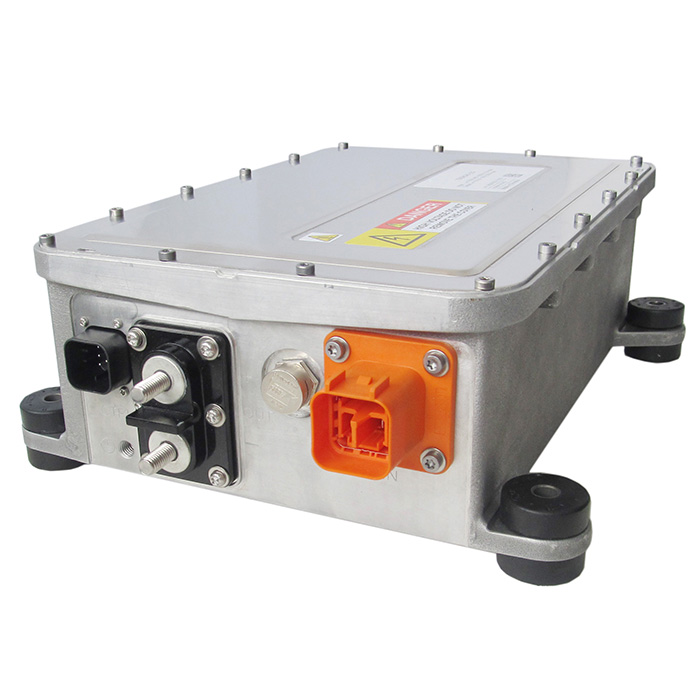

DC-DC Converter for HEV (Hybrid Electric Vehicle) Applications | Power 4000W | Output 24VDC, 143A | Input 400 - 850VDC | Liquid Cooled | IP 65 & 67

Email Form

DESCRIPTION

DC-DC Converter for HEV (Hybrid Electric Vehicle) Applications | Power 4000W | Output 24VDC, 143A | Input 400 - 850VDC | Liquid Cooled | IP 65 & 67

DOCUMENTS

3D MODEL

SUPPORT

Email Form

REQUEST QUOTE





Type DC-DC Converter
Power (W) 4000
Input Voltage Range (VDC) 400 - 850
Input Voltage Nominal (VDC) 700
Output Voltage (VDC) 24
Output Current (A) 143
Operating Temperature (°C) -40 to +70
Cooling Type Liquid
Protection IP65 / IP67
Dimensions WxHxD (mm) 270 x 113 x 342
Power Flow uni-directional - HV to LV
ev
